Plot drug response curves for single-agent data for selected call lines and drugs

Plot drug response curves for single-agent data for selected call lines and drugs

Usage

plot_dose_response_sa_by_drugs(
  dt_metrics,
  dt_average,
  cellline_name_vec = NULL,
  drug_name_vec = NULL,
  normalization_type = "GR",
  colors_vec = NULL,
  plot_averaged_flag = TRUE,
  plot_fit_flag = TRUE,
  fit_source = "gDR"
)

Arguments

dt_metrics

data.table representing data from the Metrics assay, outputted by gDRutils::convert_se_assay_to_dt(se, "Metrics") and single-agent SummarizedExperiment

dt_average

data.table representing data from the Averaged assay, outputted by gDRutils::convert_se_assay_to_dt(se, "Averaged") and single-agent SummarizedExperiment

cellline_name_vec

character vector with cell line names to be plotted (Cell Line Name)

drug_name_vec

character vector with drug names to be plotted (Drug Name)

normalization_type

string with normalization_types to be selected one of: "GR" ("GRvalue") or "RV" ("RelativeViability")

colors_vec

character vector with colors for group_names - name or hex value

plot_averaged_flag

logical flag whether plot points with average values

plot_fit_flag

logical flag whether plot points with fitted values

fit_source

string source name for metrics

Value

list of ggplot objects containing plots of dose-response curves

Examples

mae <- gDRutils::get_synthetic_data("small")
se <- mae[[gDRutils::get_supported_experiments("sa")]]

dt_metrics <- gDRutils::convert_se_assay_to_dt(se, "Metrics")
dt_average <- gDRutils::convert_se_assay_to_dt(se, "Averaged")
cellline_name_vec <- unique(dt_metrics[["CellLineName"]])[2:5]
drug_name_vec <- unique(dt_metrics[["DrugName"]])[5:7]

plot_dose_response_sa_by_drugs(dt_metrics = dt_metrics,
                               dt_average = dt_average,
                               cellline_name_vec = cellline_name_vec,
                               drug_name_vec = drug_name_vec,
                               normalization_type = "RV",
                               colors_vec = c("#00008B", "#FF6347", "#4CBB17"))

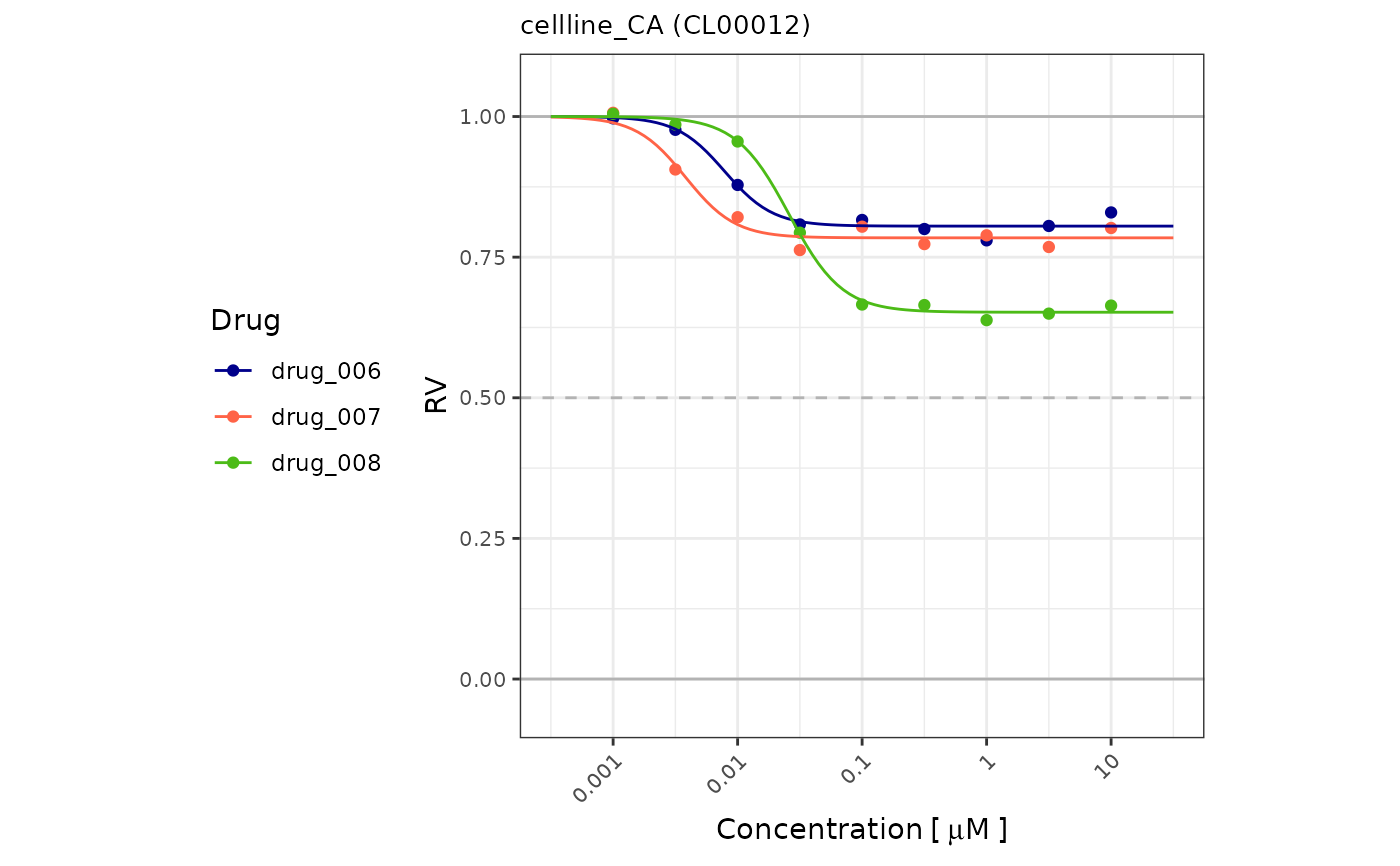

#> $cellline_CA

#>

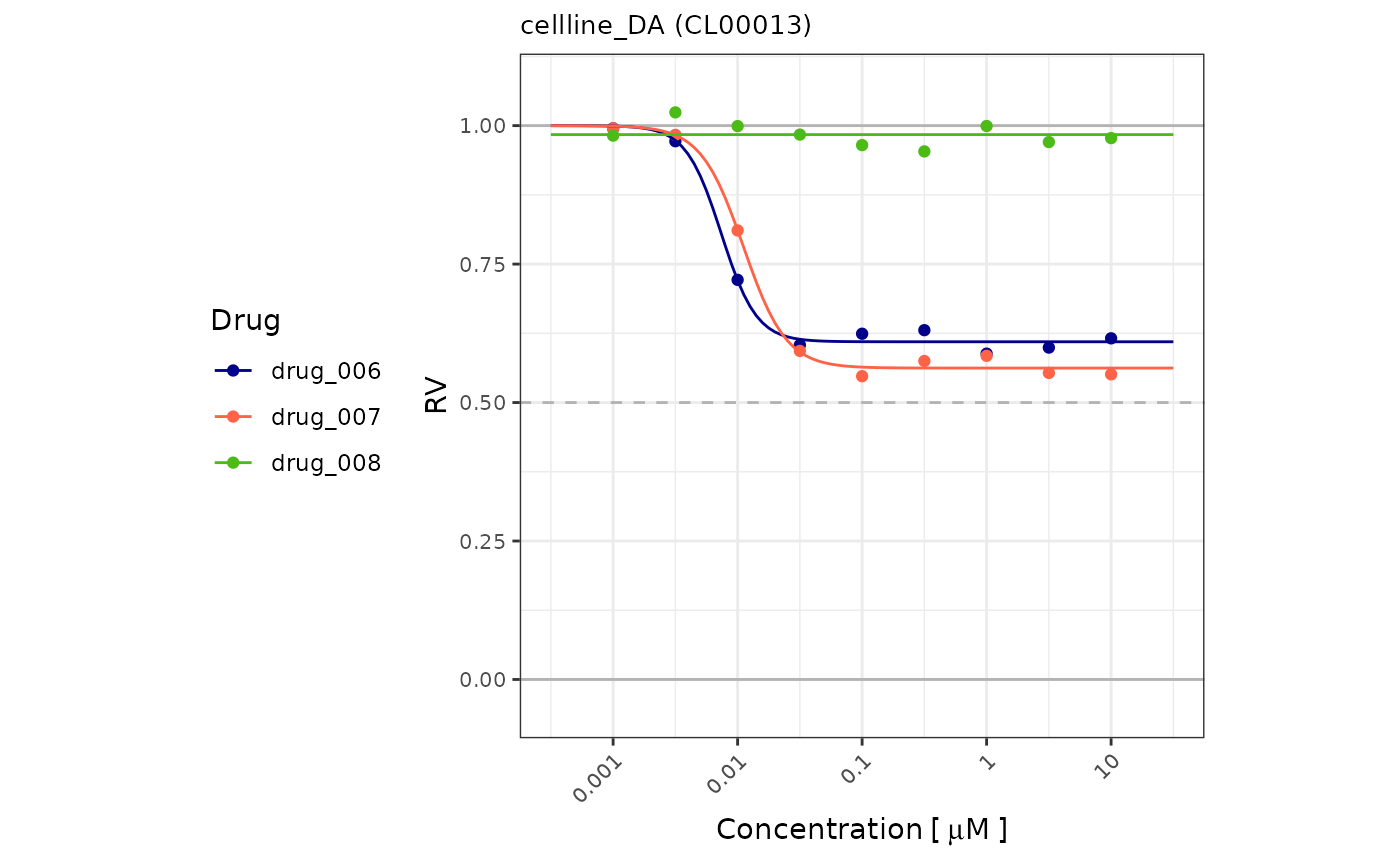

#> $cellline_DA

#>

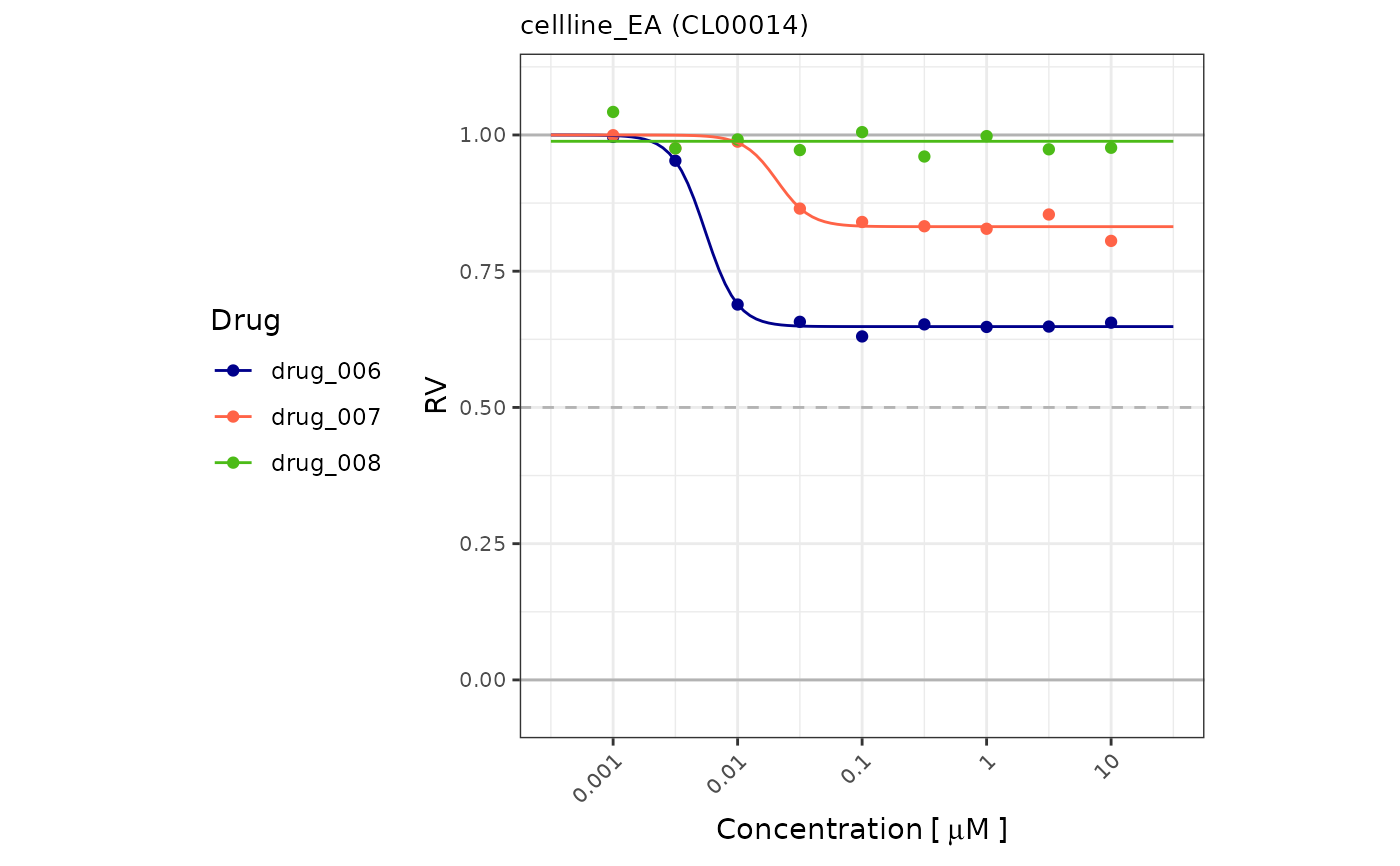

#> $cellline_EA

#>

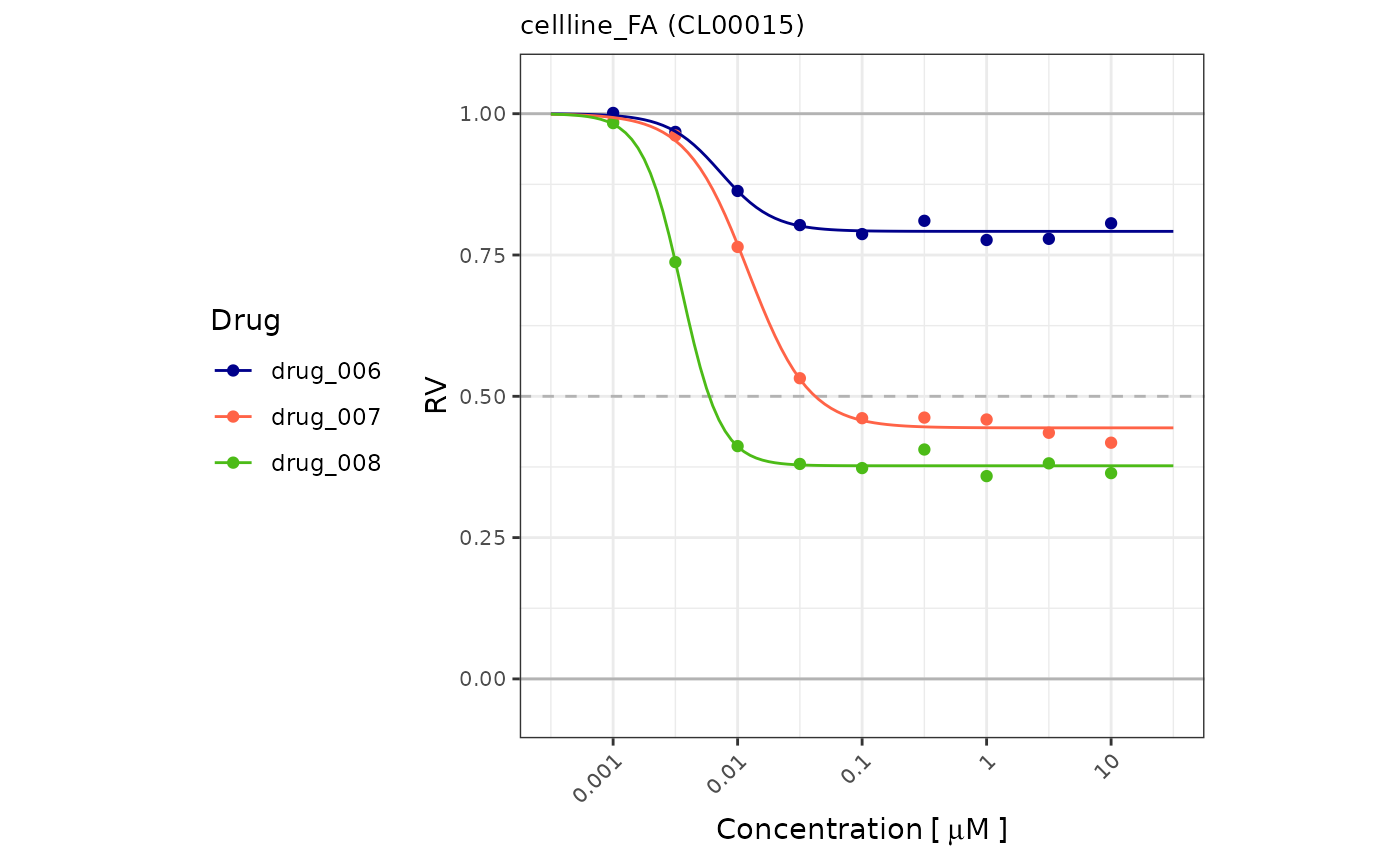

#> $cellline_FA

#>
